10Flacons ml / 10Bouteilles en verre ml + Casquettes normales / Casquettes personnalisées + Bouchon de caoutchouc
Détails de base:

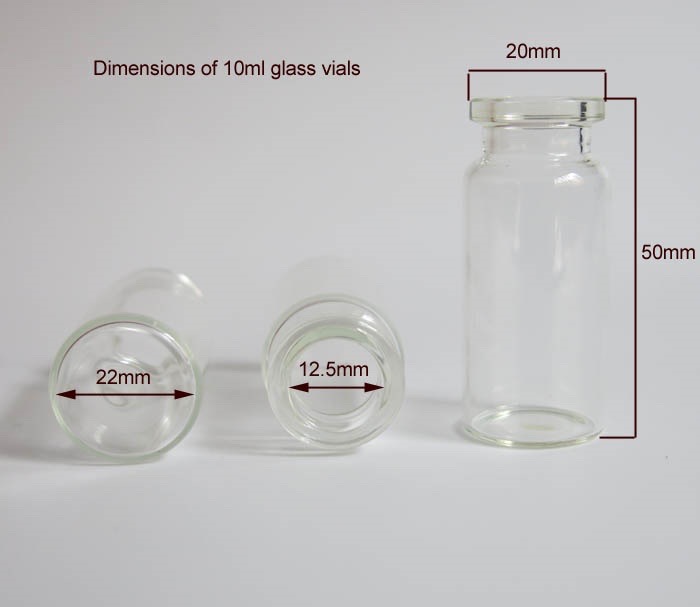

Diameter: 22mm
Height: 45mm
Neck size: 20mm
Volume: 10ml to neck
Couleur: clear
Material: glass
Logo: printing or not
La description:
1. 10ml glass vial in diameter 20mm, height 20mm, can hold 20ml on neck.
2. injection vial in size 10ml, we usually call it short 10ml, as it is shorter than our normal 10ml.
3. we also supply flip off caps, rubber stopper to match the 10ml vial
Emballage:
Packed in box and shrink wrapped, keep the glass vial clear and protect them in the
transportation.
spécification:
| Size(ml) |
O.D.(mm) |
Height(mm) |
Mouth O.D.(mm) |
Mouth I.D.(mm) |
Neck Dia.(mm) |
| 1ml |
13.7+/-0.25 |
27+/-0. 5 |
11+/-0.20 |
7.0+/-0.20 |
≤9.2 |
| 2ml |
16+/-0.25 |
35+/-0.5 |
13+/-0.20 |
7.0+/-0.20 |
≤10.5 |
| 4ml |
16+/-0.25 |
45+/-0.5 |
13+/-0.20 |
7.0+/-0.20 |
≤10.5 |
| 5ml |
18.4+/-0.3 |
39.7+/-0.5 |
13+/-0.20 |
7.0+/-0.20 |
≤10.5 |
| 7ml |
22+/-0.35 |
39.7+/-0.5 |
19.6+/-0.20 |
12.5+/-0.20 |
≤16.0 |
| 8ml |
22+/-0.35 |
45+/-0.5 |
19.6+/-0.20 |
12.5+/-0.20 |
≤16.0 |
| 10ml |
22+/-0.35 |
49.7+/-0.5 |
19.6+/-0.20 |
12.5+/-0.20 |
≤16.0 |
| 15ml |
26+/-0.35 |
52+/-0.5 |
19.6+/-0.20 |
12.5+/-0.20 |
≤16.5 |
| 20ml |
28+/-0.40 |
58+/-0.5 |
19.6+/-0.20 |
12.5+/-0.20 |
≤16.5 |
| 25ml |
28+/-0.40 |
65+/-0.5 |
19.6+/-0.20 |
12.5+/-0.20 |
≤16.5 |
| 30ml |
32+/-0.45 |
70+/-0.5 |
19.6+/-0.20 |
12.5+/-0.20 |
≤17.5 |
| 50ml |
40+/-0.85 |
80+/-0.5 |
19.6+/-0.20 |
18.8+/-0.20 |
≤22.3 |
For customized caps, we can print logo on the top, such as : lab name.
For color of caps, it all depends on you, we have many kinds for your choice.
